Hey there! As a supplier of 3P+N Cutout Fuses, I've been getting a lot of questions lately about reducing the Electromagnetic Interference (EMI) caused by these fuses. EMI can be a real pain in the neck as it can disrupt the normal operation of electronic devices, leading to malfunctions and reduced performance. So, in this blog, I'm going to share some effective measures to tackle this issue.
First off, let me briefly explain what EMI is. EMI is basically the disturbance that affects an electrical circuit due to either electromagnetic induction or electromagnetic radiation emitted from an external source. In the case of 3P+N Cutout Fuses, the switching operations and the flow of current through them can generate electromagnetic fields that cause interference.
1. Proper Grounding
One of the most fundamental steps to reduce EMI is proper grounding. A well - grounded system provides a low - impedance path for the electromagnetic noise to flow safely to the ground. When it comes to 3P+N Cutout Fuses, make sure that the grounding connections are tight and free from corrosion. A loose or corroded ground connection can increase the impedance, which in turn allows more EMI to escape into the surrounding environment.
You can use high - quality grounding cables and clamps. These cables should have a large cross - sectional area to minimize the resistance. Also, ensure that the grounding electrodes are buried deep enough in the ground and have good contact with the soil. This helps in dissipating the EMI effectively. If you're not sure about the grounding requirements, it's a good idea to consult a professional electrician. They can assess your system and recommend the best grounding solutions for your 3P+N Cutout Fuses.
2. Use of Shielding
Shielding is another great way to reduce EMI. You can use conductive shields around the 3P+N Cutout Fuses. These shields act as a barrier and prevent the electromagnetic fields from radiating out into the environment. Metallic enclosures made of materials like aluminum or copper are commonly used as shields.

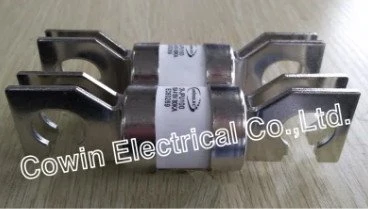

The shield should be properly grounded. This ensures that any electromagnetic energy that is absorbed by the shield is safely conducted to the ground. You can also use shielded cables to connect the 3P+N Cutout Fuses to other components in the electrical system. Shielded cables have an outer conductive layer that helps in reducing the EMI radiated from the cable itself. For more information on high - quality fuses that can be part of a shielded system, you can check out the BS88 Slotted Type Bolt Connected J Fuse.
3. Filtering
Installing EMI filters is a highly effective solution. EMI filters are designed to suppress the high - frequency noise generated by the 3P+N Cutout Fuses. These filters work by allowing the desired frequencies to pass through while blocking or attenuating the unwanted EMI frequencies.
There are different types of EMI filters available, such as line filters and common - mode filters. Line filters are used to filter the noise on the power lines, while common - mode filters are effective in reducing the common - mode noise. When choosing an EMI filter, make sure to select one that is compatible with the voltage and current ratings of your 3P+N Cutout Fuses. You can find a variety of fuse - related products, including those that can be used in conjunction with EMI filters, on Fuse Holders and Fuse Cutout.
4. Component Placement
The way you place the components in your electrical system can also have a significant impact on EMI reduction. Keep the 3P+N Cutout Fuses away from sensitive electronic components. The closer these fuses are to sensitive devices, the more likely they are to cause interference.
Arrange the components in a way that minimizes the length of the interconnecting cables. Longer cables can act as antennas and radiate more EMI. Also, try to separate the power cables and signal cables. This helps in reducing the coupling between the power - related EMI and the sensitive signals.
5. Selecting the Right Fuse
Not all fuses are created equal when it comes to EMI. Some fuses are designed with features that help in reducing EMI. For example, fuses with a low - resistance design can reduce the voltage drops and the associated electromagnetic field generation.
As a 3P+N Cutout Fuse supplier, we offer a range of fuses with different specifications to meet your needs. The 400A J Fuse Pole Mounted Fuse Cutout is a great option for many applications. It's designed to operate efficiently with minimal EMI generation.
In Conclusion
Reducing the EMI caused by 3P+N Cutout Fuses is essential for the proper functioning of your electrical systems. By implementing these measures like proper grounding, shielding, filtering, smart component placement, and selecting the right fuse, you can significantly minimize the EMI.
If you're having trouble with EMI in your electrical system or are looking to purchase high - quality 3P+N Cutout Fuses, don't hesitate to reach out. We're here to help you find the best solutions for your specific needs. Whether you're an electrician, an engineer, or a business owner installing a new electrical setup, we've got the products and expertise to support you. So, feel free to contact us for a detailed discussion and let's work together to solve your EMI and fuse - related problems.
References
- "Electromagnetic Compatibility Engineering" by Henry W. Ott
- "Handbook of Transformer Design and Application" by Colin W. L. Brown
