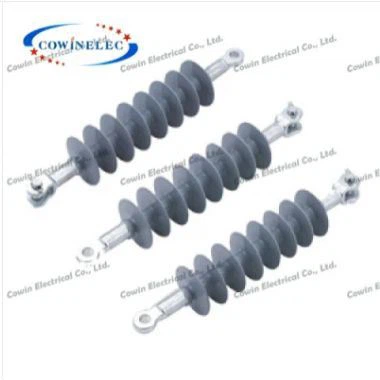

Silicone Composite Insulators

Silicone Composite Insulators

Rated Voltage 10 -- 500kV, rated failing load 70 -- 160kN; Confirm with international standard; OEM or ODM are welcome.

Send Inquiry

Product Introduction

Product Description

Rated Voltage 10 -- 500kV, rated failing load 70 -- 160kN; Confirm with international standard; OEM or ODM are welcome.

Usage: The product are suitable for the innovation of urban electrical network where it can increase the voltage and transport the electricity effectively by using the narrow street. And it can reduce the necessary height of the pole/tower. Due to its high strength of bending, it will completely avoid the crack case that happened on porcelain cross arm. Moreover, it can be well pollution resistant.

We also special supply according to your specification, pls send us details.

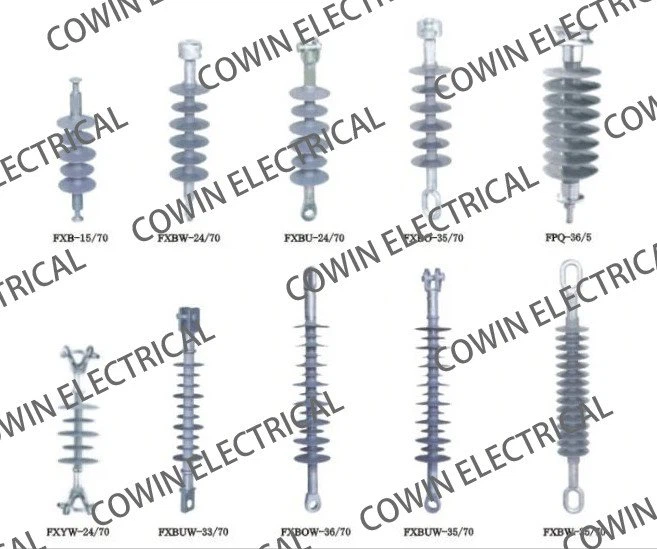

Model	Rated voltage (KV)	Rated mechanical bending load (KN)	Connection structure mark	Structure Height H (mm)	Insulating distance (mm)	Min creepage distance (mm)	Lightning impulse withstand voltage (kV)
FXBW4-10/40	10	40	11W	340±15	175	400	95
FXBW4-10/70	10	70	16W	380±15	175	480	95
FXBW4-10/100	10	100	16W	400±15	190	480	95
FXBW4-20/70	20	70	16W	450±15	280	600	170
FXBW4-20/70	20	70	16W	470±15	280	750	170
FXBW4-20/100	20	100	16W	500±15	280	750	170
FXBW4-20/120	20	120	16W	500±15	280	750	170
FXBW4-35/70	35	70	16W	650±15	450	1280	250
FXBW3-35/100	35	100	16W	670±15	450	1300	230
FXBW4-35/100	35	100	16W	670±15	450	1370	250
FXBW4-35/120	35	120	16W	680±15	450	1300	230
FXBW-66/70	66	70	16W	900±15	700	1900	410
FXBW4-66/70	66	70	16W	1010±15	780	2130	410
FXBW-66/100	66	100	16W	940±15	700	1900	410
FXBW4-66/100	66	100	16W	1010±15	780	2130	410
FXBW5-66/100	66	100	16W	940±15	700	2400	410
FXBW4-66/120	66	120	16W	940±15	700	1900	410
FXBW-110/70	110	70	16W	1200±15	1000	3150	550
FXBW4-110/70	110	70	16W	1420±15	1200	3600	550
FXBW-110/100	110	100	16W	1240±15	1000	3150	550
FXBW4-110/100	110	100	16W	1240±15	1000	3550	550
FXBW5-110/100	110	100	16W	1440±15	1200	3600	550
FXBW-110/120	110	120	16W	1240±15	1000	3150	550
FXBW4-110/120	110	120	16W	1440±15	1200	3600	550
FXBW-110/160	110	160	20R	1300±15	1050	3600	550
FXBW4-110/160	110	160	20R	1440±15	1140	4200	550
FXBW-220/70	220	70	16W	2150±30	1900	6300	1000
FXBW4-220/70	220	70	16W	2240±30	2000	6600	1000
FXBW-220/100	220	100	16W	2150±35	1900	6300	1000
FXBW4-220/100	220	100	16W	2240±30	2000	6600	1000
FXBW5-220/100	220	100	16W	2470±30	2150	6900	1000
FXBW6-220/100	220	100	16W	2240±30	1900	6770	1000
FXBW4-220/120	220	120	16W	2240±30	2000	6600	1000
FXBW-220/160	220	160	20R	2240±30	1900	6300	1000
FXBW4-220/160	220	160	20R	2470±30	2150	6900	1000
FXBW-220/180	220	180	20R	2240±30	1900	6300	1000
FXBW4-220/180	220	180	20R	2470±30	2150	6900	1000
FXBW-220/210	220	210	20R	2240±30	1900	6300	1000
FXBW4-220/210	220	210	20R	2470±30	2150	6900	1000
FXBW-330/100	330	100	16W	2930±40	2600	9075	1425
FXBW4-330/100	330	100	16W	2990±40	2600	9500	1425
FXBW5-330/100	330	100	16W	2930±40	2600	9075	1425

Hot Tags: silicone composite insulators, China, silicone composite insulators manufacturers, suppliers, factory, 400 amp meter base pedestal, wire grip clamp, signal arrester, 3 phase lightning arrester, porcelain standoff insulator, surge arrester in substation

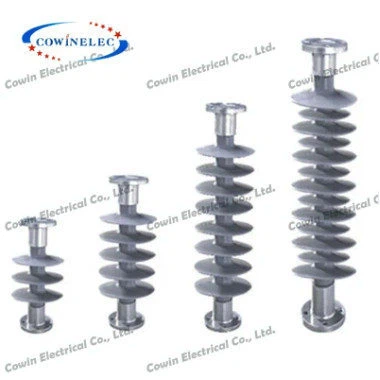

Composite Post Insulator

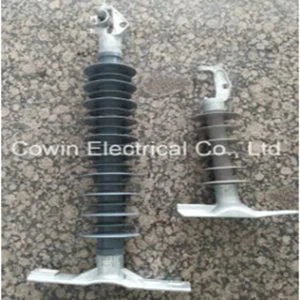

Line Post Insulator
